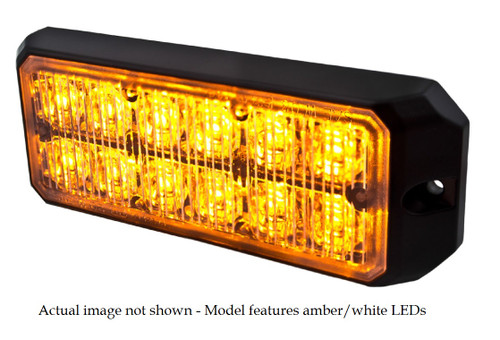

The Hella MS26 Mini LED Lighthead H22892011 features a weatherproof and vibration resistant design for external use.
PRODUCT FEATURES:
- Multi-voltage input 12 - 24 VDC
- 25 user selectable flash patterns including steady on
- 3 programmable modes (up-down, left-right, criss-cross)
- 12 powerful LEDs for superior warning
- Low profile for discreet mounting
- Black aluminum base for maximum heat dissipation and durability
- Non-volatile memory recalls last flash pattern used at power up
- Multiple units can be grouped to flash simultaneously or alternately
- Reverse polarity protection
- 5 year warranty
PRODUCT SPECIFICATIONS:
- Part No.: H22892011
- Color: Amber/White
- Light Source: 12 LEDs
- Warning Patterns: 25 Flash Patterns
- Operating Voltage: 11 - 30 VDC
- Max Power: 30 W
- Approvals: SAE J595 Class 1, California Title 13
- Connections: 8” (20 cm) wire leads
- Multi-Unit Sync: Over 15 units
- Operating Temperature: -40°C to +60°C
- IP Rating: IPX7
- Dimensions: See image #2
MS26 Flash Patterns:
- Double (R65)
- Single (2Hz)
- Triple (2Hz)
- Quad (2Hz)
- Random
- Single (split)
- Double (split)
- Quad (split)
- Quint (split)
- Mega (split)
- Ultra (split)
- Single-Quad (split)
- Single H/L (split)
- Single (all)
- Double (all)
- Quad (all)
- Quint (all)
- Mega (all)
- Ultra (all)
- Single-Quad (all)
- Single H/L (all)
- Steady 2 (california)
- Steady 4 (all)
- Rotate Slow
- Rotate Fast
All = all LEDs on
Product Condition: NEW
Hella Lighthead H22892011
