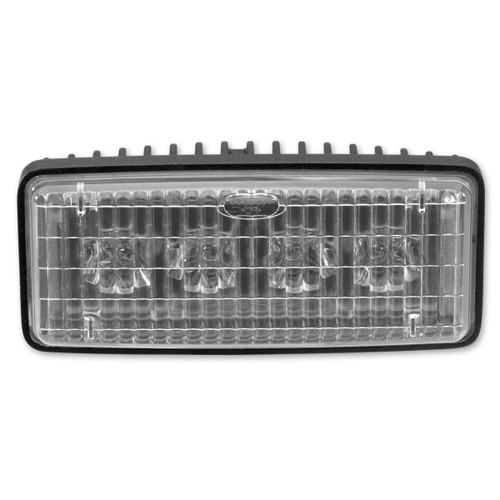

The JW Speaker Model 6048 is the perfect retrofit for GE H4360-12V sealed beams. The durable construction and bright, white light produced by state-of-the-art LEDs combine to make the Model 6048 brighter and more reliable than any bulb-based 5" x 2" light could ever be.
PRODUCT FEATURES:
- Available in multiple beam pattern configurations
- Polycarbonate lens resists ultraviolet rays
- Durable die-cast aluminum housing
PRODUCT SPECIFICATIONS:
- JW Speaker Part No.: 0543591
- Brand: JW Speaker
- Model: Model 6048
- Shape: Rectangular
- Lens Material: Polycarbonate
- Outer Lens Color: Clear
- Housing Material: Die-Cast Aluminum
- Housing Color: Black
- Mounting Type: Flush Mount
- Lens Pattern: Forward Lighting - Driving
- Light Source: LED
- Raw Lumen Output: 1,280
- Effective Lumen Output: 430
- Candela Output: 3,000
- Nominal LED Color Temperature: 5000 K
- Minimum Operating Temperature: -40 °C / -40 °F
- Maximum Operating Temperature: 65 °C / 149 °F
- Connector or Wiring: Bare Leads
- Input Voltage: 12-24V DC
- Operating Voltage: 9-32V DC
- Transient Spike Protection: 150V Peak @ 1 HZ-100 Pulses
- Red Wire: Positive
- Black Wire: Negative
- Current Draw: 1.2A @ 12V DC, 0.6A @ 24V DC
- Height: 63.25 mm / 2.49 in
- Width: 138.18 mm / 5.44 in
- Depth: 55.63 mm / 2.19 in
- Product Weight: 0.71 lbs / 0.32 kgs
- Shipping Weight: 0.92 lbs / 0.42 kgs
- Standards Compliance: Buy America Compliant • ECE Reg. 10 (Radiated Emissions Only) • Sealed to IP67
- Applications: Agriculture • Construction • Industrial • Material • Mining • Off-Road 4x4 • Power Sports • Railroad • Specialty • Truck & Bus
Product Condition: NEW
