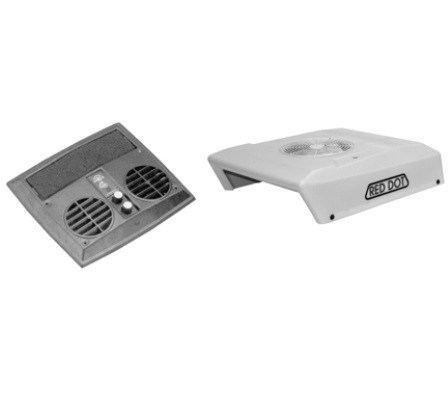

The 10-9718 is the ultimate rooftop air conditioner design. It is a lightweight, high capacity unit with a styled low profile that fits the aerodynamic truck designs of today. Notice the sloping front that rides comfortably over center marker lights. A low profile plenum extends 1-1/2” into the cab and blends easily into the headliner leaving ample head room. High-velocity air can be directed 360° through large diffusers located directly below the double blowers. Also featured is a cab air filter incorporated into the plenum. The heavy duty design contains tube and fin coil construction, a high capacity receiver drier and a trinary system protection switch. The trinary switch extends condenser motor life and guards against premature component failure. Should the 10-9718 ever need service, only two outside bolts need to be removed to access any component. The 10-9718 is perfect for most truck applications, especially C.O.E.’s where space in the cab is limited
The Condenser coil is aluminum fin and copper tube construction. This material selection, which includes a tube of .022” (6cm) wall thickness, results in an effective, lightweight and rugged coil. The Condenser motor is a permanent magnet type selected for its extended life. The motor is sealed and a slinger ring and hub cap added for weather protection. The fan is aluminum with a heavy duty spider and riveted blades. AC 24V version available - see model 10-9719.
NOTE: This is not a self contained unit. Must be shipped Freight only.
A/C UNIT REQUIRES:
- A/C Compressor
- Hose Kit #9855
- Engine Compressor Bracket Kit
PRODUCT SPECIFICATIONS:
- MEI Part No.: 10-9718
- Truck Air Part No.: 50-9718
- Model: R-6100-0
- Manufacturer: Red Dot
- Application: Heavy, Medium & Light Duty Trucks, Construction and Agricultural Cabs
- Type: A/C Only
- Mounting Type: Rooftop Mount
- Refrigerant Type: R134a
- Volts: 12V
- Air Flow: 265 CFM (450 m3/h)
- Capacity: 16,000 BTU/Hr (4,032 kcal/h)
- Current Draw: 33 amps @ 13.6 VDC (includes 4 amps for A/C clutch)
- Weight: 44 lbs. (33.6 kg)
- Dimensions: See image #2
SERVICE PARTS:
- Blower Wheel (CCW)...............................................Part No.: 3611
- Blower Wheel (CW)................................................Part No.: 3610
- Condenser........................................................Part No.: 6063
- Condenser Fan....................................................Part No.: 3810
- Condenser Motor - 12v............................................Part No.: 3542
- Evaporator Coil..................................................Part No.: 6539
- Evaporator Motor - 12v...........................................Part No.: 3238
- Expansion Valve..................................................Part No.: 1600
- Knobs (2)........................................................Part No.: 1271
- Louver Assembly 4-1/2” (2)......................................Part No.: 1730
- Receiver Drier...................................................Part No.: 7123
- Relay - 12v......................................................Part No.: 1261
- Replacement Plenum Gasket........................................Part No.: RD2-1297-0
- Replacement Roof Seal............................................Part No.: RD2-1240-0
- Resistor.........................................................Part No.: 1220
- Rotary Switch - 3 speed, 5 terminal..............................Part No.: 1150
- Thermostatic Switch..............................................Part No.: 1336
- Trinary™ Pressure Switch.........................................Part No.: 1560
Product Condition: NEW
MEI A/C Unit 10-9718
Note:
**Professional installation is required.
**Backwall, floor, rooftop and headliner air conditioners require connection to an external A/C compressor (Compressor and connection components not included).
