- SKU:
- 77287386
- UPC:
- 666501044228
- Weight:
- 8.00 LBS
- so_moq:
- 1
- so_qi:
- 1
- Estimated Special Order Ship Date:
- Special Order (ships approximately 2 Weeks)
- Special Order Available:
- Increments of 1
- QPO:
- 0
- COO:
- US
- MPN:
- 3585HP
- HarmonizeCode:
- 8415.90.9000

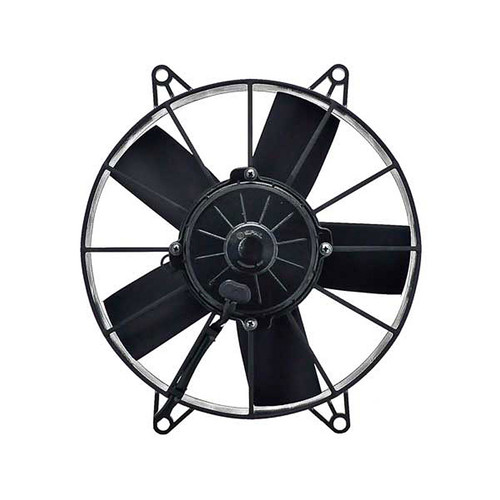

The MEI 3585HP Electric Pusher Fan is a pusher fan (blowing) that features a 12-inch industry size fan and fan blade diameter of 11.02-inches. It is normally installed in front of condenser. This high performance electric cooling fan assembly also has 1362 CFM rating, clockwise rotation and a voltage of 12 volts.
PRODUCT SPECIFICATIONS:
- MEI Part No.: 3585HP
- AirSource Part No.: 3585HP
- CoolStar Part No.: 142-1031
- SPAL Part No.: 3010.0177
- Truck Air Part No.: 06-3585H
- Description: Electric Cooling Fan Assembly
- Type: Pusher (Blower) Fan
- Application: Multi Fit Applications
- Manufacturer: Spal
- Manufacturer #: VA03-AP70/LL-37S
- Volts: 12V
- Industry Size: 12"
- Overall Diameter: 11.93"
- Fan Blade Diameter: 11.02"
- Width: 3.70"
- Mounting Hole Distance (upper to lower): 11.73"
- Mounting Hole Distance (upper L to lower R): 6.77"
- Mounting Type: Strap or bracket
- Rotation: CW
- Airflow CFM:
- Additional Notes: 14 amps@13.5V
Product Condition: NEW
