- SKU:
- 77208955
- UPC:
- 666501359001
- Weight:
- 35.00 LBS
- so_moq:
- 1
- so_qi:
- 1
- NA:
- NA
- Special Order Available:
- Increments of 1
- QPO:
- 0
- COO:
- US
- MPN:
- 5896V
- HarmonizeCode:
- 8413.30.0000
PRODUCT SPECIFICATIONS:
- MEI Part No.: 5896V
- Manufacturer #: 10046500
- Other OE Sanden #: 10368500
- Additional OE Sanden #: 2521209

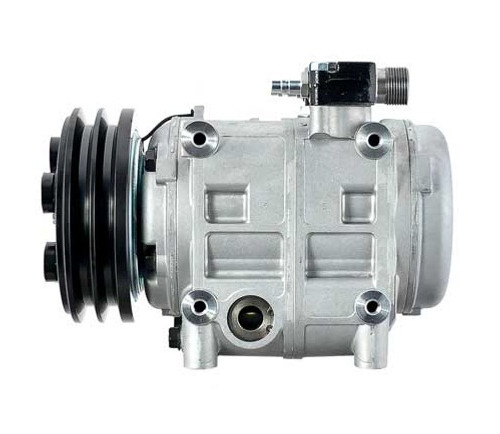

- Model: TM31
- Application: Bus Applications
- Description: Seltec TM31 comp. w/2Agr,12V
- Volts: 12V
- Clutch Diameter: 140mm
- No. of Grooves: 2 groove
- Belt Type: Two 1/2'' Belts
- No. Comp. Cylinders: 10 cyl
- Comp. Displacement (ci): 15.6 cu.in.
- Factory Oil Charge: 500cc Oil
- Fitting Port Position: Top
- Fitting Style: Male Insert O-Ring #10 & #12
- Head Type: TM31
- Wire Type: 1 Wire bullet
- Replacement Clutch Assy.: 5078
- Replacement Head Assy: NSS
- Mounting Type: Direct mount
- Oil Type: PAG46
- Product Name: Compressor
- Refrigerant Type: R134a
- Rotation: CW
- O-Ring #1: 0015
- O-Ring #2: 0017
- Shaft Type: Splined shaft
- Site_Glass Location: Repl. PNO 50031 (set 2)
- Diode Protection: None
Product Condition: NEW
