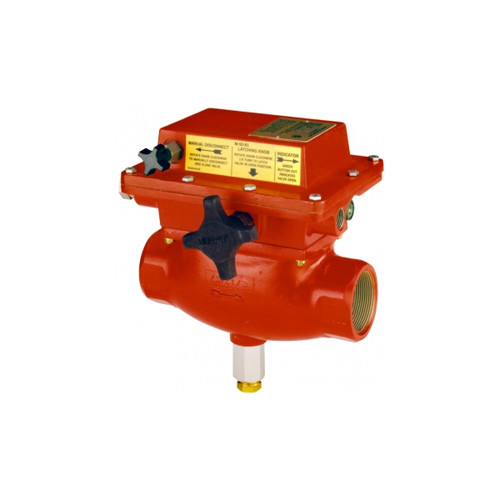

The Murphy Fuel Shutoff Valve M2582-B is a 2-inch (51 mm) valve with two NPT connections. It has one SPDT snap-switch. It is a semi-automatic devices for shutdown of natural gas-fueled engines. The valve is opened manually and closes when the electromagnet is energized and trips the latch. The valve can be closed manually by turning the disconnect knob.
PRODUCT FEATURES:
- Instant Response to Shut Off Signal
- Positive Valve Closure
- Vents Gases Trapped After Shutdown
PRODUCT SPECIFICATIONS:
- Murphy Part No.:M5081-C-2
- Series: M50 Series
- Base Model: M5081
- Trip Coil: CD Ignition
- Valve Body: Steel
- Valve Seat: Buna-N
- Maximum Pressure Rating: 100 psig (689 kPa) [6.89 bar]
- Coil Rating: Intermittent duty; coil type must match power source
- CD Ignition Resistance: 72 Ω
- CD Primary Voltage Current: 1.38 to 3.8 A
- Wiring: Terminal Blocks
- Snap-switch Rating: 5 A @ 480 VAC
- Laboratory Approval: CSA listed for Class I, Groups C and D Hazardous Locations. 5 amps maximum; intermittent duty; switch contacts rated 5 A @ 480 VAC maximum
- Shipping Weight: 40 lbs (18.14 kg)
- Shipping Dimension: 12 x 12 x 9-5/16 in. (305 x 305 x 237 mm
Product Condition: NEW
