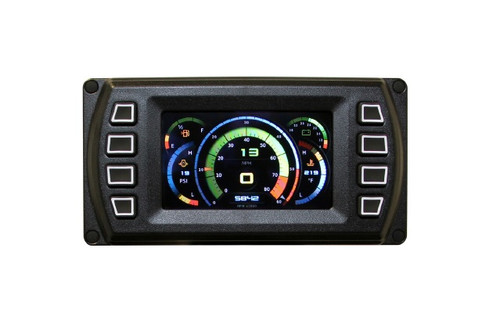

The Murphy PowerView Display CSA Certified with Video PV450-01-CSA is a compact, fully configurable display designed for use in modern electronic engines. It integrates electronic engine, transmission and equipment information into an easy to read, full-color interface. The PV450-01-CSA features a 4.3-inch screen perfect for applications with tighter spaces, and it delivers the same powerful performance as Murphy’s larger configurable displays. In addition, the PV450-01-CSA display meets the requirements for Tier4/Euro Stage IIIB emissions monitoring from the factory.
The PowerView450 display is compatible with PowerVision Configuration Studio, so you can continue to make quick and easy changes to the display.
FEATURES:
- CSA Certified
- Endless possibilities
- Rugged / Reliable Design
- QNX Operating System
- Real-time clock with battery backup
- Bonded LCD screen viewable in direct sunlight
- Easy-to-use PowerVision Configuration Studio Software
- Customize the bezel, buttons, I/O interface and more
- Compact CAN-based display to fit your application with freely configurable design
- Approved for Class I, Division 2, Groups B, C and D; Temperature Code T4
PRODUCT SPECIFICATIONS:
- Model No.: PV450-01-CSA
- Part No.: 78700543
- Display: Bonded 4.3” color transmissive TFT LCD
- Resolution: WQVGA, 480 x 272 pixels, 16-bit color
- Aspect Ratio: 16:9
- Orientation: Landscape or portrait
- Backlighting: LED, 500-650 cd / m2 (30,000 hr lifetime)
- Microprocessor: Freescale iMX35 32bit, 532Mhz
- Flash Memory: 256 MB (explandable to 8GB)
- RAM: 128 Mbytes DDR2 SDRAM
- Operating Voltage: 6-32 VDC, protected against reverse polarity and load-dump
- Power Consumption: 10W max
- CAN: Two CAN 2.0B
- RS485: 1 MODBUS Master/Slave
- Video input (Optional): Two NTSC/PAL input channels with one displayed at a time
- Protocols: CANopen, freeform
- Connection: 4 Deutsch DT 6-pin connectors
- Keyboard: 8 tactile buttons (will support up to 16)
- USB: 2.0 host (full speed)
- Output: (1) Open-drain, capable of sinking 500 mA
- Input: (1) Resistive, 0-5 V, or 4-20 mA (software configurable)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Protection: IP 66 and 67, front and back
- Emissions and Immunity: Electromagnetic Compatibility: 2004/108/EC: EN 61000-6-4 • EN 61000-6-2 (immunity) • EN 501121-3-2 • EN 12895 • J1113/2, 4, 11, 12, 21, 24, 26, and 41
- Vibration: Random vibration, 7.86 Grms (5-2000 Hz), 3 axis
- Shock: +/- 50G in 3 axis
- CSA Certification: Class I Division 2 Groups B, C, & D; T4; IP66
- Environmental Protection: IP 66 and 67
Product Condition: NEW
Murphy PowerView Display CSA Certified PV450-01-CSA
