- SKU:
- 77182893
- Weight:
- 0.26 LBS
- so_moq:
- 1
- so_qi:
- 1
- NA:
- NA
- Special Order Available:
- Increments of 1
- QPO:
- 2
- MPN:
- SM-2A-5R

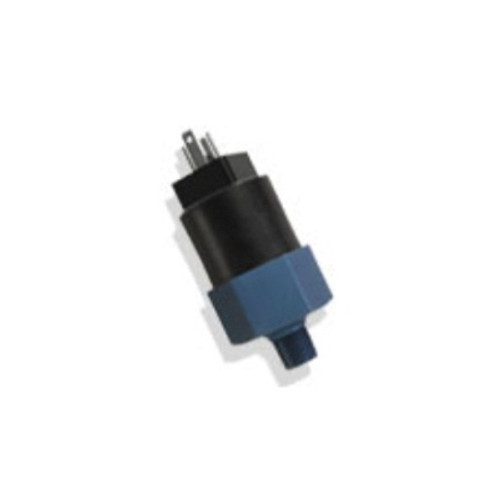

PRODUCT FEATURES:
- Long-life elastomer diaphragm
- High-quality snap-action switch
- Factory preset
- Available in a wide range of configurations
- Economical
- Pneumatic and hydraulic applications
- NEMA 4, 13
PRODUCT SPECIFICATIONS:
- Nason Part No.: SM-2A-5R
- Type: SM
- Media Connection Modifier: Standard (Brass)
- Media Connection: 1/8"-27 NPT Male
- Circuit Form: SPST-NO (Single Pole Single Throw - Normally Open)
- Fixed Set Point: 5 PSI
- Set Point Direction: Rising
- Electrical Connection: #8-32 Screw Terminal
- Diaphragm Material: Standard (Buna Nitrile 366y)
- Contacts: Standard (5 A @125/250 VAC / 5 A @30 VDC)
- Maximum Operating Pressure: 250 PSI (17 Bar)
- Cycle Life: 1 Million
- Operating Temperature: -20°F - +220°F
- Unit Weight: .13 lbs.
Product Condition: NEW
