- SKU:
- 77132530
- Weight:
- 1.33 LBS
- so_moq:
- 1
- so_qi:
- 1
- Estimated Special Order Ship Date:
- Special Order (ships approx 2 Weeks)
- Special Order Available:
- Increments of 1
- QPO:
- 0
- MPN:
- 2756

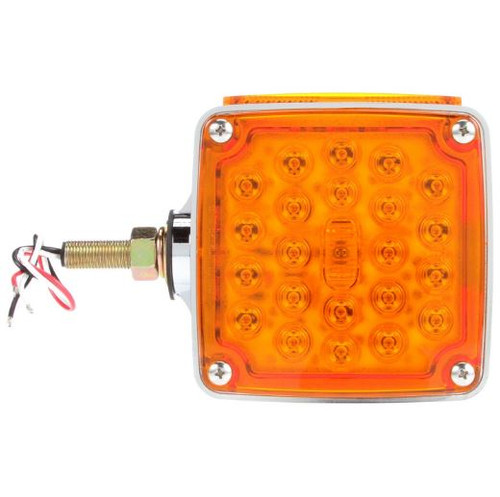

PRODUCT FEATURES:
- Ideal for show trucks, highway, mowing, municipal and farm equipment
- Unique LED array displays full pattern output
- Side marker reflex reflector
- LEDs have no filament, therefore are extremely resistant to shock and vibration.
- LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
- 18 diode pattern
- Chrome plated housing
- Meets SAE J974 for agricultural warning devices
- Epoxy encapsulated electronics protect the lamp from damage caused by chemicals and moisture
PRODUCT SPECIFICATIONS:
- Truck-Lite Part No.: 2756
- Brand: Signal-Stat
- Series: Signal-Stat
- Warranty: 2-Year
- Current Major: 0.38
- Current Minor: 0.04
- Voltage: 12
- Lighting Technology: LED
- Number of Diodes/Bulbs: 24
- Number of Faces: Dual Face
- Number of Wires: 2
- Packaging Type: Standard
- Std Carton Qty: 1
- Lamp Connection: Hardwired
- Plug Side One: Hardwired
- Plug Side Two: Stripped End|Ring Terminal
- Kit (Y/N): No
- Lens Shape: Square
- Lens Color: Red|Yellow
- Housing Color: Chrome
- Housing Material: Zinc
- Lens Material: Polycarbonate
- Compliance Family: FMVSS 108|DOT|SAE
- Standards Met: I6
- VMRS: 034-003-141
- Mount Type: 1 Stud Mount
- Mounting Orientation: Vertical
- Position: Right Hand Side
- Side Marker (Y/N): Yes
- Common Size: 4.5"x4.5"
- Mounting Connector Diameter: 0.5 inch
- Lens Width: 4.54 inch
- Lens Height: 4.54 inch
- Total Height: 4.92 inch
- Total Width: 4.74 inch
- Total Depth: 2.40 inch
- Weight: 1.39 pound
- Wire Gauge: 18
- Product Type: Pedestal Light
- UPC: 0735111169468
Product Condition: NEW
